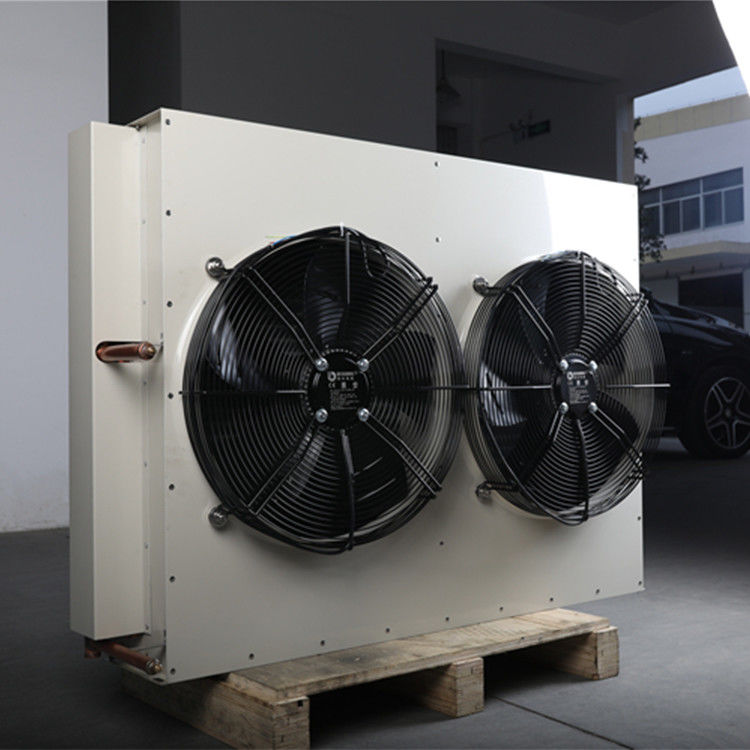

A vertical side mounted condenser with good air guiding effect and beautiful appearance, suitable for refrigerants such as R404A, R507A, R4481, R22, etc

CL series vertical side-mounted condenser product overview

   CL series condenser is designed with vertical side-mounted structure, air intake on the rear side and air outlet on the front side;
It is mainly used in air-cooled condensing units where the condenser and compressor are required to be installed separately.
   This series of products has the following characteristics:
   1.With vertical side-mounted structure, the condenser can be installed in a stacked manner to save installation space.
   2.Enclosure: High-quality galvanized steel plate sprayed with powder coating (silver gray RAL9006); the fan tube is designed with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
The side sheet of the heat exchanger is made of aluminum plate, which can effectively protect the copper tube;
   3.Coli: Tube diameter φ9.5, female thread copper pipe, tube spacing 25×21.65 in triangular arrangement, high heat exchange efficiency.
   4.Corrugated aluminum sheet made of hydrophilic aluminum foil is adopted, with the sheet spacing of 2.1mm;
   5.Fan: It is design with standard 3P/380V/50Hz power supply, fitted with φ400, φ500 and φ630 external rotor fans, 1-3 fans in one row, 4-6-8 fans in double rows; 4-pole motor is adopted as the standard component.
   6.The test pressure of the product is 32bar.
   7.It is compatible with R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
