High Cost-Effective JB/T 4750-2003 Certified Water Cooled Condensing Unit with 1 Year Warranty

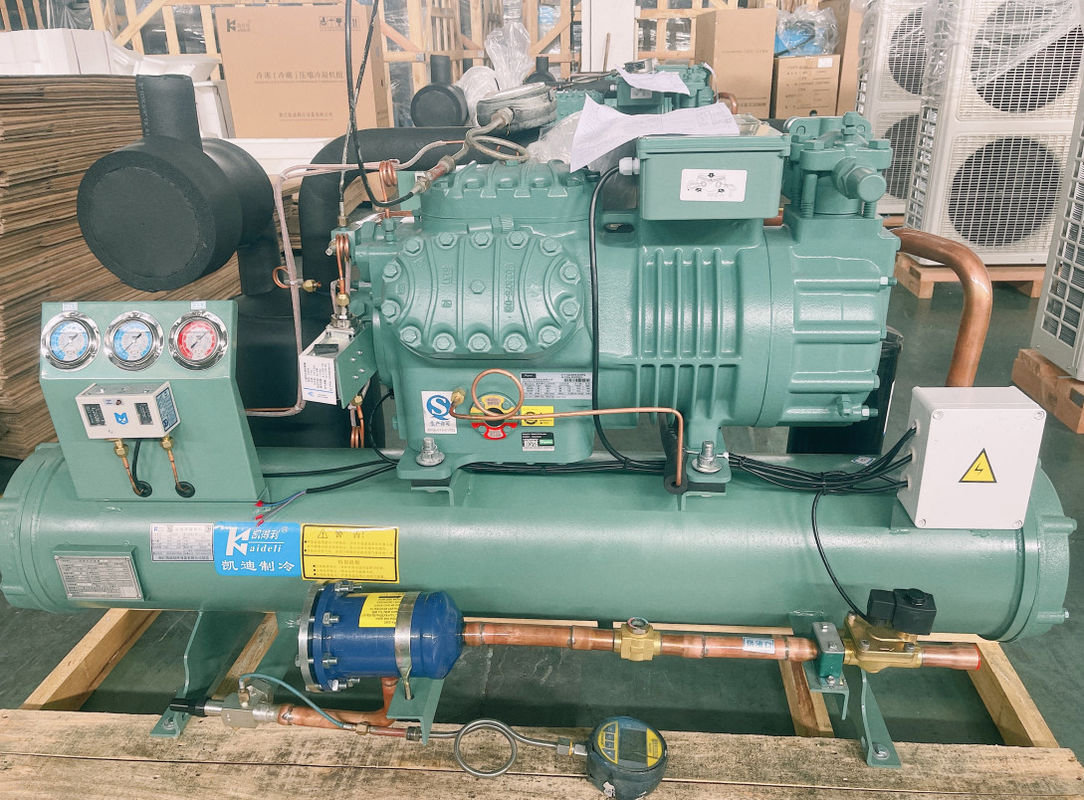

KCWS series semi-hermetic reciprocating water cooled compressor condensing unit product overview

● Units for freezing and quick-freezing processing environments (ambient temperature: -25°C to -50°C);
● For piston compressors, two-stage compression is generally adopted when the compression ratio exceeds 8-10; for piston compressors using refrigerant R22, a two-stage compression configuration is recommended when the evaporation temperature falls below -30°C;
● Air-cooled condensers are manufactured using high-speed punching and secondary flanging processes. Copper tubes and fins are tightly expanded mechanically, resulting in high heat exchange efficiency;
● Shell-and-tube water condensers utilize high-efficiency externally threaded copper tubes for superior heat transfer performance. They are strictly produced and inspected in accordance with JB/T 4750-2003 ("Pressure Vessels for Refrigeration Installations") to ensure product quality;
● The units incorporate well-known domestic brand refrigeration components:
① Basic configuration: intercooler assembly, filter, solenoid valve, dual pressure controller, high and low pressure gauges;
② Standard configuration: intercooler assembly, discharge vibration absorber, oil separator, filter, sight glass, solenoid valve, dual pressure controller, high and low pressure gauges;
● Additional components can be supplied based on customer requirements.

How to assure quality? Any procedure?

Our QC department will make sure of each step

Do you factory?

We are factory established in 1995 and through 30years developed,welcomed by all our customers.Because of all your support now we are a big family of more than 300 people,covered 50000 square meters,and your supporting is very important of continuing our dream of eating fresh and healthy food.

Why choose us

Professional:30years focus one thing-refrigeration equipments

Material we use sufficient

Certificate:CE, ISO, and cetiifcate of producing special pressure equipment

Projects reference
